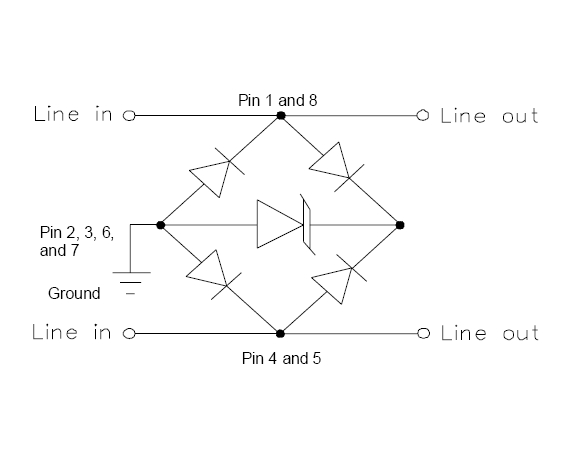

Surge Protection on Ethernet
PCB Spark Gaps
- Breakdown voltage = (3000 * air_pressure_atm * distance_mm) + 1350
- 0.1mm = 1650V
- 0.2mm = 1950V
